2019-10-30 PLANNER DATE:
2016-06-07

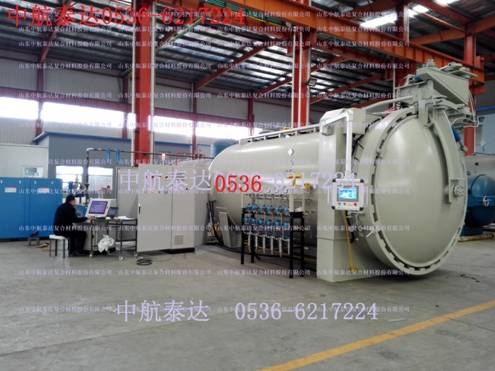

-----Composite Autoclave
NO: ZTDCN20160607
(Pictures are only for reference information, take
practicality as standard)
目 錄
1. 3D SKETCH 熱壓罐3D制圖
2. LISTED SPECIFICATIONS 熱壓罐規格表
3. SPECIFICATION
IN DETAIL基本參數
4. SYTEM PROFILE 系統介紹
-----------------4.1
Flange cap罐門
-----------------4.2
Body 罐體
-----------------4.3
Insulation 保溫
-----------------4.4
Loading design承載設計
-----------------4.5
Motor air flow control風機循環單元
-----------------4.6 Heating control 加熱單元
-----------------4.7
Cooling system壓力單元 (Offer not include the fittings noted in red)
-----------------4.8
Pressure control冷卻單元((Offer not include the fittings noted in
red))
-----------------4.9
Vacuum system真空單元
-----------------4.10 Temperature control溫度測量單元
-----------------4.11 Safety guarantee part安全系統
-----------------4.12 Maintance platform維護平臺
-----------------4.13 Automatical operation system自動控制單元
-----------------4.14 Operation environment環境要求
5. DUTY FOR BUYER AND SELLER分工
6. SELLER SITE CONFRIM驗收
7. DELIVERY運輸
8. PAYMENT付款
9. GUARANTEE質保
10.
CONFIGURATIONS LISTED 配置表
1. DESIGN SKETCH 3D 熱壓罐3D制圖
1) WORK SPACE : 2000MM *4000MM
2) VACUUM PORTS 32 NOZS
3) DESIGN FOLLOWING RULES OF “CHONHUNTEDA ”
4) PRESSURE EQUIPMENT DIRECTIVES ASME
2．LISTED SPECIFICATIONS 熱壓罐規格表
2.1 Main specification主要技術參數 | UNITE單位 | CONTENT內容 | |
DOOR CAP門的數量 | PCS/個 | 1 | |
INTERIOR DIA使用內徑 | mm | 2000 | |
WORK LENGTH使用長度 | mm | 4000 | |
WORK PRESSURE工作壓力 | MPa | 1.1 | |
WORK TEMPERATURE工作溫度 | ℃ | 180 | |
DESIGN TEMPERATURE設計溫度 | ℃ | 200 | |
BODY MATERIAL罐體材料牌號 |
| Q345R | |
INTERIOR INSULATION保溫形式 |
| INTERIOR內保溫 | |
HEATING 加熱方式 |
| Electrical | |
COOLING MEDIUM冷卻方式 |
| Water水 | |
USAGE用途 |
| Composite復合材料 | |
LOADING WEIGHT負載材料重量 | Kg | 5000 | |
TEMPERATURE RISING RATE升溫速率 | ℃/min | 0.1-3 | |
INITIAL TEMPERATURE加熱起始溫度 | ℃ | RT | |
COOLING RATE降溫速率 | ℃/min | 0.1-3 | |
COOLING TEM. LIMIT降溫終止溫度 | ℃ | 60 | |
TEM. UNIFORMITY 溫度均勻性 | ℃ | ±2℃（NON-LOADING空載） | |
THERMORCOUPLE NOZS. 熱電偶數量 |
| 8 | |
EXTERIOR SHELL TEM.罐體表面溫度 | ℃/min | 室溫＋20℃，局部不超過60℃ +20 room temperature, non - over than | |
PRESSURE CONTROL ACCURACY壓力控制精度 | MPa | 0.02Mpa | |
PRESSURE RISING RATE升壓速率 | MPa/min | 0.1 | |
PRESSURE RELEASE RATE泄壓速率 | MPa/min | 0.1 | |
SILENSER GRADE消音器排氣噪音 | dBA | ≦80 | |
| |||
2.2 Basic design基本設計 | |||
ENVIRONMENT WORKING TEMPERATURE 工作溫度范圍 | ℃/min | 5~40℃ | |
POWER VOLTAGE電源電壓 | V | 380V三相五線制 | |
FREQUENCY頻率 | Hz | 50 | |
PENUMATIC PRESSURE 控制氣源壓力 | MPa | 0.8 | |
PENUMATIC REQUIREMENTS控制氣源質量 |
| Non-oil, | |
CIRCULATION WATER PRESSURE循環水壓力 | MPa | 0.3 | |
| |||
2.3 Air circulation空氣循環系統 | |||
AIR FLOW風道類型 |
| Circle 環型 | |
MOTOR QUANTITY風機數量 |
| 1 | |
MOTOR POWER風機功率 | KW | 30 | |
AIR 額度風量 | m3/h |
| |
|
|
| |
2.4 Heating system加熱系統 | |||
HEATING 加熱方式 |
| ELECTRICAL | |
COILS NOZZS加熱器數量 | 個 | 1 | |
COIL MATERIAL加熱器材料 |
| Stainless | |
HEATING POWER加熱功率 | KW | 150 | |
|
|
| |
2.5 Cooling system冷卻系統 | |||
COOLING MEDIUM 冷卻方式 |
| Water水 | |
COOLER NOZS冷卻器數量 | SET/個 | 1 | |
COOLER MATERIAL冷卻器材料 |
| Stainless | |
|
|
| |
2.6 Pressure system供氣系統(選配 By Customer) | |||
GAS TYPE氣體種類 |
| 空氣Air | |
GAS PRESSURE供氣壓力 | MPa | 1.2MPa | |
AIR COMPRESSOR空壓機 |
| xxKW | |
冷干機 |
| 與空壓機配套 | |
|
|
| |
2.7 Circulation water循環水（選配 By Customer) | |||
WATER GRADE水質 |
| SOFT | |
PUMP循環水泵 |
| 30m3X2 | |
WATER TANK水箱 |
| 10m3 | |
CONDENSER冷卻器 |
| 300000Kcal | |
|
|
| |
2.8 Vacuum sytem真空系統 | |||
VACUUM PORTS NOZS.真空路數 |
| 32 | |
LIMIT VACUUM GRADE極限真空度 | Mpa | -0.098MPa | |
VACUUM MOTOR真空泵種類 |
| Rotary | |
|
|
| |
